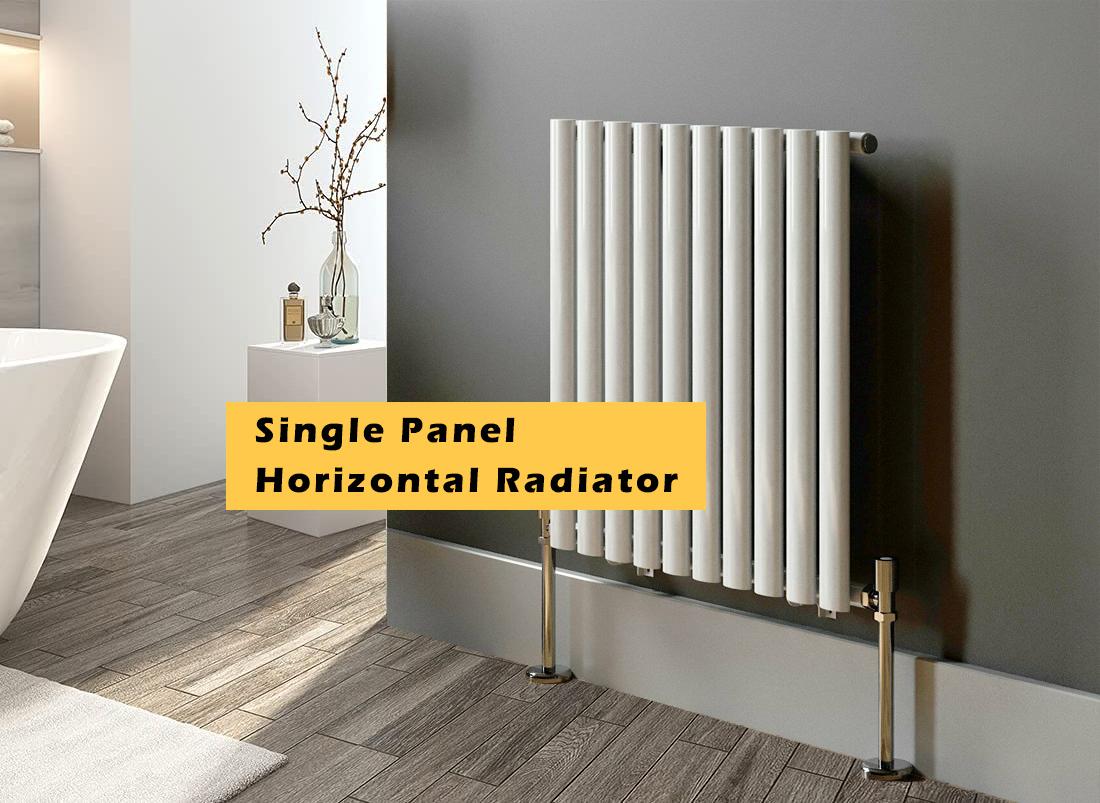

Single Panel Designer Horizontal Radiator
600mm Height
| TECHNICAL SPECIFICATION / ТЕХНИЧЕСКАЯ СПЕЦИФИКАЦИЯ | ||||||
|
Height (mm) высота |
Width (mm) ширина |
Center Distance (mm) Расстояние до центра |
Bars разделы |
BTU БТЕ |
Weight (kg) масса |
Finish цвет |
| 600 | 408 | 560 | 6 | 1328 | 8 |
anthracite white black антрацит белый черный |
| 600 | 612 | 560 | 9 | 1982 | 11 | |
| 600 | 748 | 560 | 11 | 2418 | 14 | |
| 600 | 884 | 560 | 13 | 2854 | 16 | |
| 600 | 1020 | 560 | 15 | 3290 | 18 | |
| 600 | 1156 | 560 | 17 | 3726 | 20 | |
| 600 | 1428 | 560 | 21 | 4598 | 25 | |
| Elliptical Tube / Эллиптическая трубка :60*15mm Round Tube / Круглая трубка: 35mm | ||||||
✔ Modern style flat single or Double panel radiator.
✔ High quality triple layered finish.
✔ Compatible with all UK domestic heating systems
✔ Tested to ISO9001:2008 and BS EN 442 European safety standards.
✔ With wall brackets and fixings.
✔ Fully safety tested.
✔ Pipe size 60*12/15
This designer vertical oval tube radiator offers a heating solution that combines contemporary design and an affordable price. Stylish and sleek, this modern design is perfect for enhancing the look of your home whilst maximising heat output. Made from low carbon steel and finished with a high quality triple layer anthracite grey powder coating, this radiator's built to last and comes with a 5 year guarantee for absolute peace of mind.
Pressure tested to 13 bar, it's suitable for all domestic and most commercial water-fed central heating systems and is easy to install. It's ideal for rooms where wall space is a premium.
Technical Information
- heat output 3546Btu 1039W
- Material: Low carbon steel
- Finish: Triple layer Anthracite RAL 7016 Powder Coating
- Heat Source: Central Heating
- EN442 Certified
- CE Certified
- Guarantee - Radiator: 5 Years
- Includes brackets & fixings
- Valves are not included
